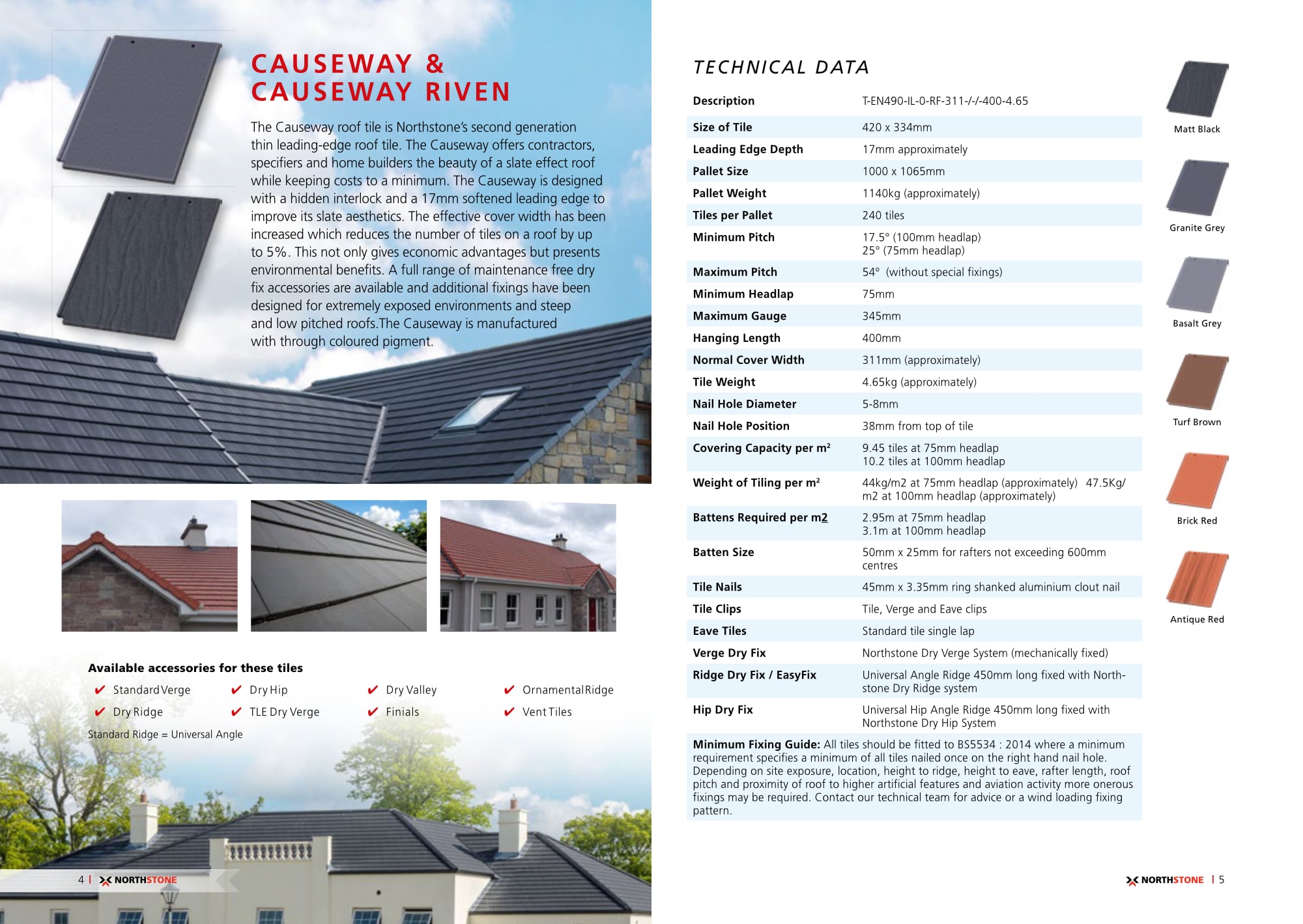

The Causeway concrete roof tile is Northstones second generation thin leading-edge roof tile. The Causeway offers the beauty of a slate effect roof while keeping costs to a minimum. The Causeway is a 17mm softened leading edge to improve its slate aesthetics. The effective cover width has been increased which reduces the number of tiles on a roof by up to 5%. This not only gives economic advantages but presents environmental benefits too.
Northstone Causeway Roof Tile
Size of Tile
420mmx334mm
Tile Weight 4.65kg
Coverage:
9.45 tiles at 75mm Headlap
10.2 Tiles at 100mm Headlap
Minimum Pitch with 100mm Headlap 17.5 Degrees
Minimum Pitch with 75mm Headlap 22.5 Degrees
Maximum Batten Gauge 345mm
Weight of tiling per m2:
44kg/m2 at 75mm Headlap
47.5kg/m2 at 100mm Headap
Profile Depth 17mm
